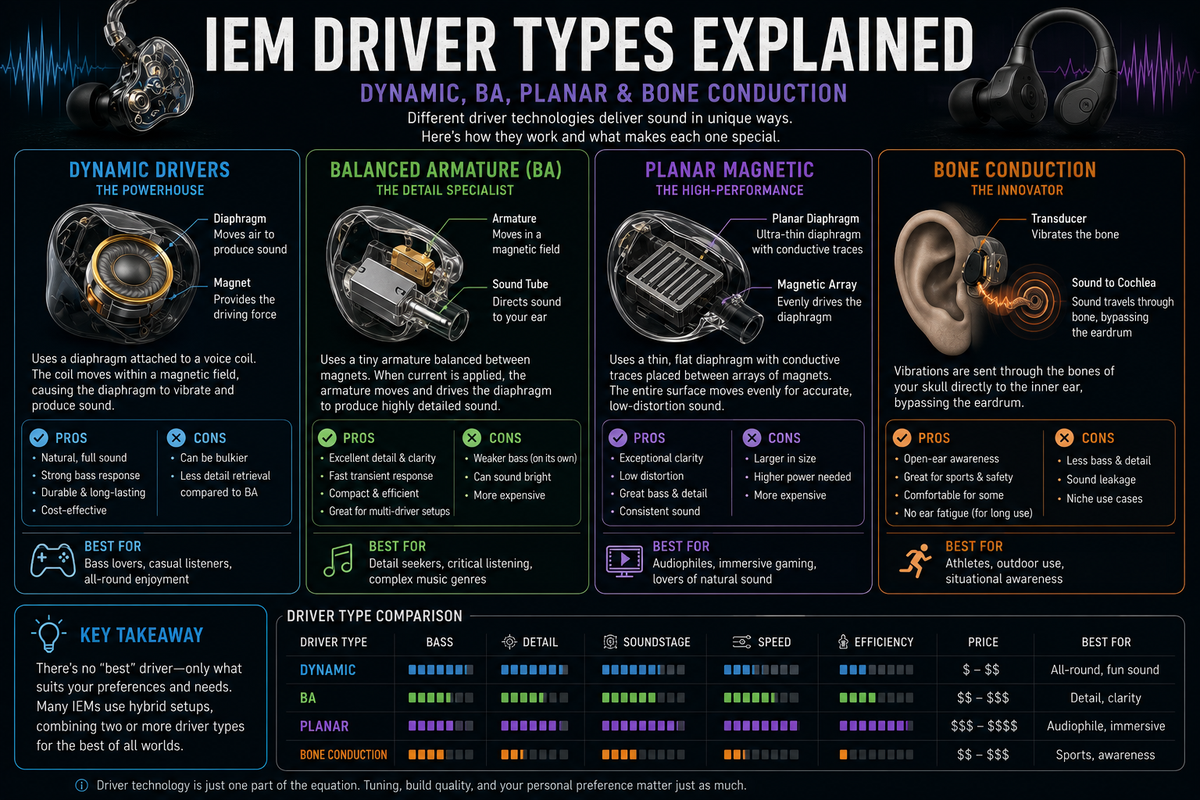

IEM Driver Types Explained: Dynamic, BA, Planar & Bone Conduction
The driver is the tiny engine inside an IEM that turns electricity into sound. Different driver technologies produce sound in fundamentally different ways — and knowing the difference is the fastest way to predict how a set will sound before you ever hear it.
Dynamic Drivers (DD): The All-Rounder
A dynamic driver is a miniature version of a traditional speaker: a diaphragm attached to a voice coil, moving inside a magnetic field. It’s the oldest and most common design for good reason — dynamic drivers move air naturally, which produces physical, satisfying bass and a coherent sound from top to bottom.
Modern budget IEMs have pushed dynamic driver technology remarkably far. Ultra-thin diaphragms (like the 3.8μ unit in the CCA CRA) respond faster, recovering detail that used to require exotic designs. Best for: anyone, but especially bass-forward genres.
Balanced Armature (BA): The Detail Specialist
Balanced armatures are tiny sealed drivers originally designed for hearing aids. They’re extremely fast and precise — excellent at reproducing fine detail in mids and treble — but they move very little air, so a BA alone produces lean bass. That’s why they usually appear in hybrid configurations.
Hybrids: The Best of Both
A hybrid IEM pairs a dynamic driver (handling the bass) with one or more balanced armatures (handling detail). The CCA C10 packs four balanced armatures plus one dynamic driver into each ear — five-driver separation and layering at a price that would’ve been unthinkable a few years ago. The CCZ BC01 Pro takes a simpler 1+1 approach for a cleaner, stage-monitor character. Best for: listeners who want detail and instrument separation without giving up bass.
Planar Magnetic: The Speed Demon
Planar drivers spread the conductor across the entire diaphragm surface, driving the whole film uniformly. The result is exceptional speed, resolution, and control — the technology behind many flagship headphones, now shrunk into IEMs. Planars typically want a bit more power than a phone provides, which is where a dongle DAC earns its keep. Best for: detail obsessives and complex, busy music.
Bone Conduction (BC): The Texture Engine
The newest arrival in budget audio. A bone conduction driver transmits low-frequency vibration through physical contact rather than air, adding tactile, feelable texture to sub-bass. In a set like the KBEAR KB02 — which pairs a beryllium-plated dynamic driver with a dedicated BC unit — the result is bass with physical weight, closer to what you feel at a live show. Best for: immersion seekers and bassheads who want sensation, not just volume.
So Which Should You Buy?
Don’t chase driver counts — chase tuning. A well-tuned single dynamic beats a badly-tuned five-driver hybrid every time. Use driver type as a starting point for the character you want, then read honest descriptions of how each set is actually tuned. Every product in The Vault Collection lists its full driver configuration and the real-world trade-offs.
