How to Read a Frequency Response Graph (Without an Engineering Degree)

Imagine being able to glance at a single chart and know, before spending a cent, whether an IEM will sound bassy or bright, warm or clinical, smooth or fatiguing. That chart exists. It's called a frequency response graph, and it is the closest thing this hobby has to a nutrition label — an honest, standardized summary of what's inside. Most people scroll past it because it looks like something from an engineering exam. By the end of this article, you'll read it like a menu.

The two axes, in plain English

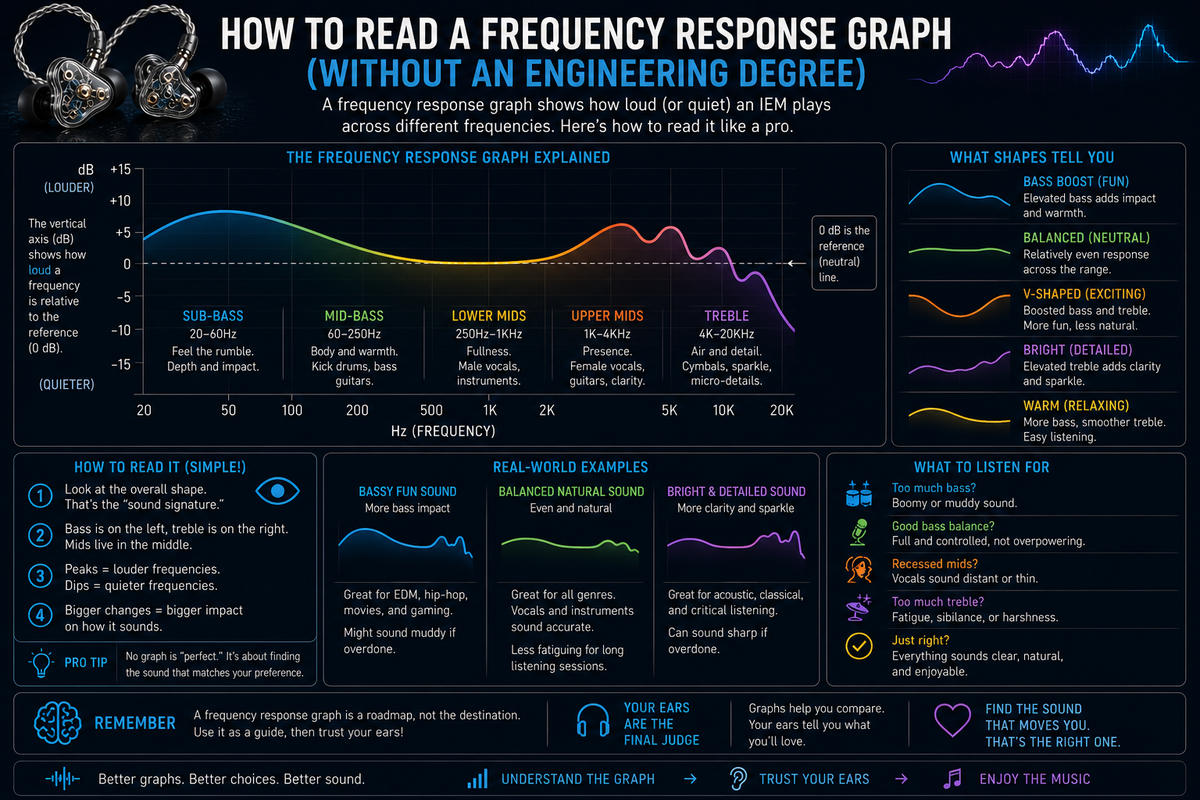

Every frequency response graph has the same two dimensions. Along the bottom (the x-axis) runs frequency — pitch — measured in hertz, from the deep lows on the left (20 Hz, the rumble you feel in your chest) to the airy highs on the right (20,000 Hz, the shimmer at the top of a cymbal). It's drawn on a logarithmic scale, which is just a fancy way of saying the spacing matches how we actually hear: we notice the jump from 100 to 200 Hz as much as the jump from 1,000 to 2,000.

Up the side (the y-axis) runs loudness, in decibels. Higher on the chart means that pitch is played louder; lower means quieter. And here is the entire secret of reading these graphs in one sentence: the shape of the line tells you which frequencies are emphasized and which are recessed — and that shape is the sound signature. A hump in the bass region means a bassy IEM. A dip in the treble means a smooth, dark one. That's it. Everything else is detail.

The neighborhoods of sound

To read the line, you need to know the territory it travels through. Think of the frequency range as a street with a few distinct neighborhoods:

Sub-bass (20–60 Hz): the felt, physical rumble — the drop in electronic music, the weight of a kick drum. A lift here gives an IEM that visceral, chest-thumping quality. Bass (60–250 Hz): the body and warmth of the sound, the punch of drums and the heft of a bass guitar. Mids (250 Hz–2 kHz): the heart of almost all music — voices, guitars, pianos. Recess this region and a set sounds hollow and distant; this is where "scooped" V-shaped tunings sacrifice vocals for flash. Upper mids / presence (2–5 kHz): the most important and most dangerous region of all. Our ears are naturally most sensitive here, and a careful boost adds clarity and "presence" that makes vocals leap forward — but push it too far and you get shoutiness and fatigue. Treble (5–10 kHz): crispness, bite, the edge of cymbals and consonants. Too much and you get "sibilance," that piercing sss on vocals. Air (10–20 kHz): the final sense of openness and sparkle.

Reading the common shapes

Once you see the neighborhoods, the famous tunings become obvious silhouettes. A V-shape (or U-shape) lifts the bass and treble while dipping the mids — exciting, punchy, great for a noisy commute, the classic energetic budget sound. A warm tuning raises the bass and relaxes the treble — smooth, easy, fatigue-free for long sessions. A bright tuning does the reverse, lifting the treble for detail at the risk of harshness. And a neutral or "balanced" tuning — the goal of research targets like Harman — keeps the line relatively even, with just a gentle bass lift and that natural presence bump, aiming to reproduce music as recorded rather than flavor it. If you'd like the full tour of these signatures and the music each suits, our Sound Signatures Explained guide goes deeper.

The honest caveats — because a graph is a map, not the territory

A frequency response graph is the most useful single tool you have, but anyone who treats it as gospel will eventually be wrong, so let's be precise about its limits. First, measurements above roughly 8 kHz are unreliable: the equipment and the quirks of the human ear canal make the treble region genuinely hard to measure consistently, so don't agonize over wiggles way out on the right. Second, different measurement rigs produce different graphs — a curve from one reviewer's coupler won't line up perfectly with another's, so compare graphs from the same source when you can. Third, and most importantly, your ears are not the measurement ear. The unique shape of your ear canal can shift the high frequencies by 15 decibels or more from the average, which is exactly why two people can hear the same "perfect" IEM completely differently.

None of this makes the graph useless — it makes it a brilliant first approximation rather than a guarantee. Used well, it turns shopping from a gamble into an educated prediction: you can look at a set's curve, recognize the warm tilt or the treble spike, and know whether it's likely to suit you before you ever hear it. That's not engineering. That's literacy — and it's the single most valuable skill a budget audiophile can own. (Want to decode the rest of the spec sheet too? See IEM Specs Explained.)
